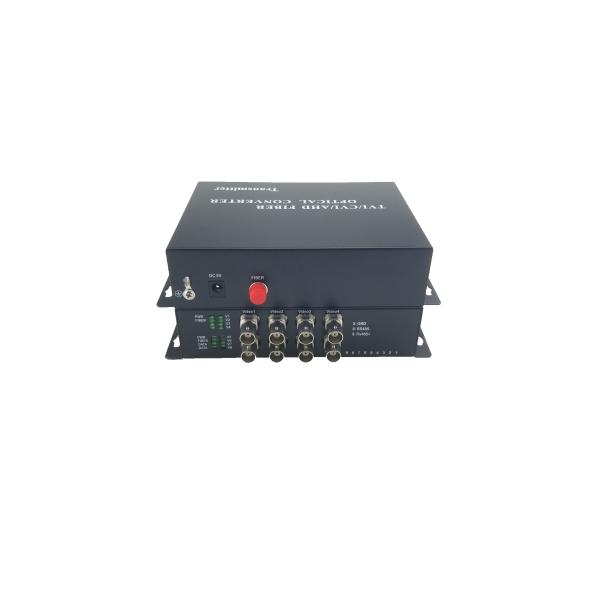

Video & Audio to Fiber Multiplexer can simultaneously transmit 8 ch AHD/CVI/TVI/CVBS/Analog Video & 8ch Audio & more benefits(optional) over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment .
Product Features
*Signal-to-noise ratio (SNR) remains unchanged within transmission range
*Automatic power adjustment and automatic temperature compensating circuit
*Surface-mount technology
*Power and working state indication
*Plug-in and freestanding structure
*Automatic recovery of overload protection
*FC optical connector
*In conformity with NEMA specifications
*Hot swap replacement
*Ultra-optical dynamic range, and adjustment is needless in use
Description:
| Opitcal: |
| Wavelength | 1310nm&1550nm |
| Output Power | -6~-2dBm |
| Rx sensitivity | -22dBm |
| Transmission Distance | 9/125u single mode, 20km |
| Optical connector | FC,ST,SC (optional) |
| Video: |
| Number of Channels | 8 |
| Input/output impedance | 75Ω |
| Physical Port | BNC port |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 60MHz |
| Sampling Bandwidth | 10bit |
| Sampling Frequency | 120MHz |
| Rise and Fall time | <0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Data: |
| Data protocol | RS485 |
| Data rate | 0~200 Kbps |
| Error rate | < 10-9 |
| Connector | Standard terminal lead |
| Other: |
| Power | DC5V 2A |
| Power Consumption | ≤7.5W |
| Temperature | -30ºC ~75ºC |
| Humidity | 10%~90% RH |
| Installation | Wall mount |
| MTBF | ≥ 100000Hours |
| Case material | Aluminum |
Packaging & Shipping
Delivery
1. Method of shippment
The goods will be sent by International express, such as DHL/Fedex/UPS/TNT. It takes 3~7 days!
2. Delivery time
Sample: 2 days
Order: Normal 3~5 days
Mass production: It depends on the quantity and the season when you order. Please contact LISA to ask the lead time.
Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03
Packing list
1 Pair (Transmitter & Receiver)
2 x Power supply
1 x User manual
